BaseGrid GB-700

BaseGrid GB-700

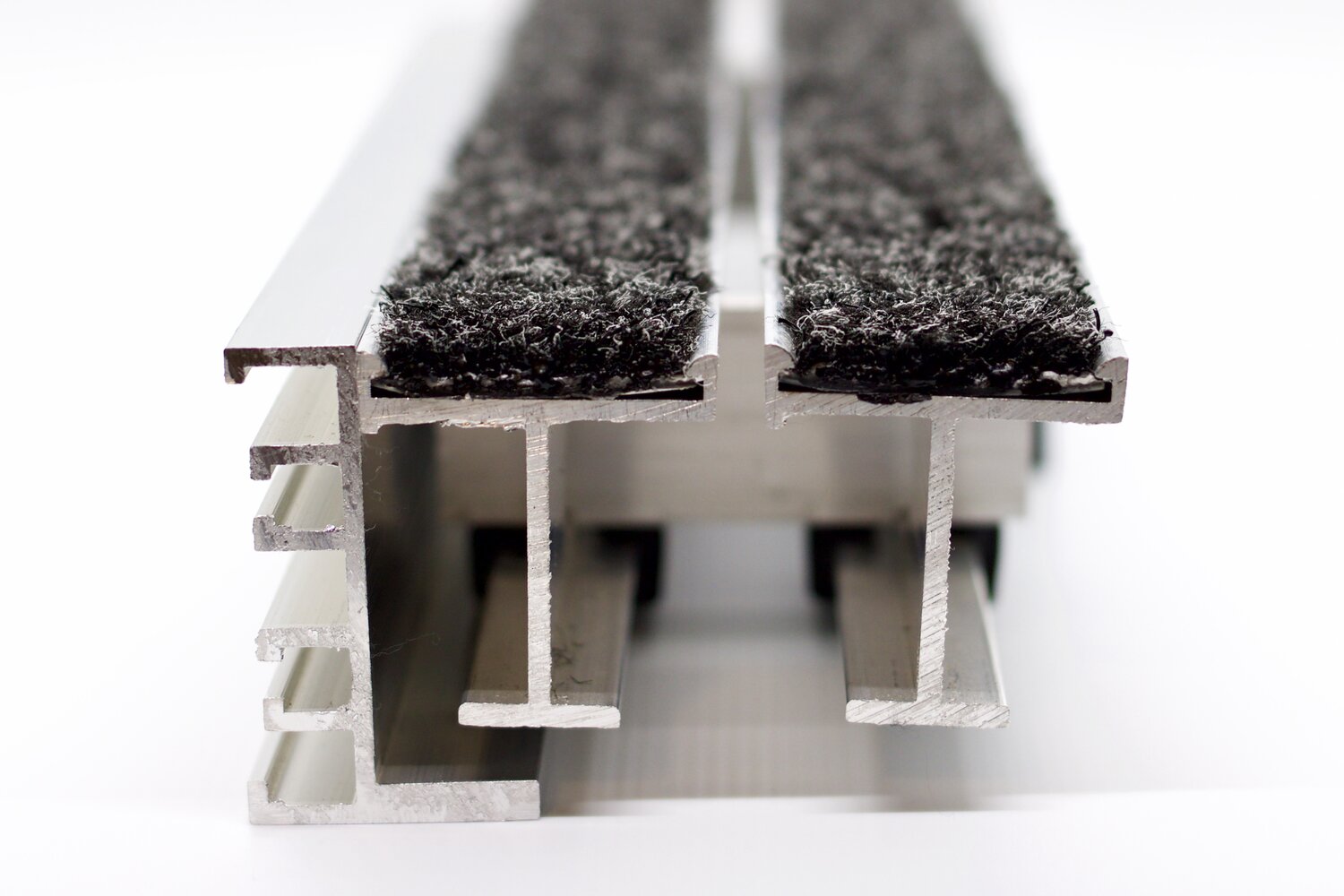

The BaseGrid GB-700 series features a rigid 1-3/4" I-beam all aluminum design. The aluminum cross member gridlock keep rails in place, while vinyl footers help to cushion both foot and cart traffic. See below for all Tread and Metal Colors.

GB-700 Variants

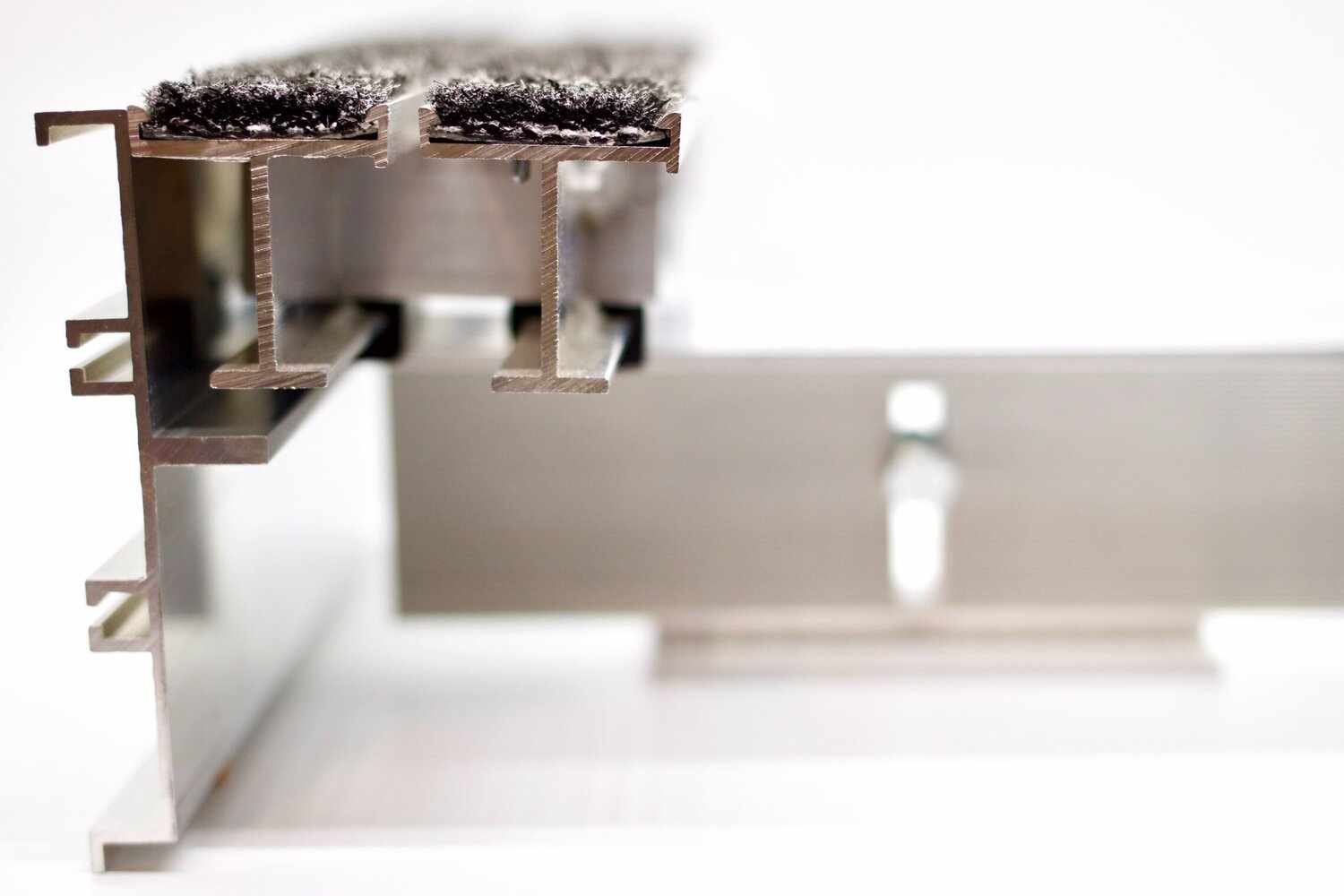

Frame Options for BaseGrid GB-700

Product Frames


Product Details

  • Materials: Corrosion-Resistant 6063-T5 aluminum with numerous insert options
  • Weight Load Capacity: 400 lbs. per wheel
  • Thickness: 1-3/4"

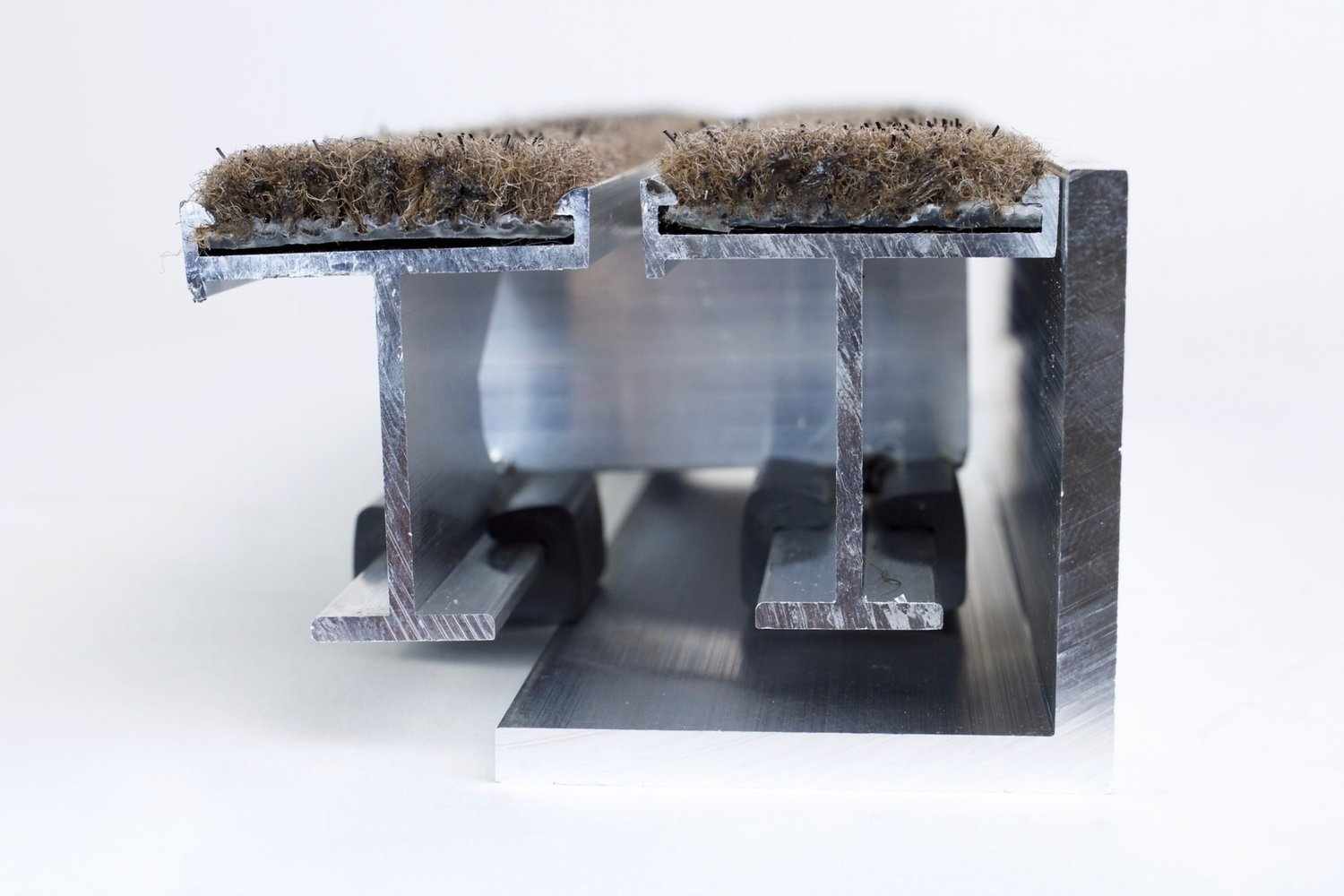

  • Depth: Mat and frame(L-7B or "T" frame): 2"
  • Frame Options: Recess only
  • LEED: based on NCv4
    - v4 MR p2
    - v4 MR c1
    - v4 MR c3
    - v4 EQ c1
  • Recycled Content: 49% per-consumer
  • Additional Specs: 6063-T5  aluminum spaced 1-1/2" on center and connected with gridlock welded rails
  • Custom alternation patterns are available for all inserts


Product Downloads

Tread Insert Options

Tread Types

Metal Finish Options


Mill finish is standard. Anodized color palette shown. Custom anodized and powder coated finishes available upon request.

Product Detail Drawings

Product Detail Drawings



Recessed Level Bed Frame


Recessed Level Bed Frame Reverse Mitered


Recessed Tapered Angle Frame


Recessed Tapered Angle Frame Reverse Mitered


No Frame


No Frame and No Vinyl Cushions
